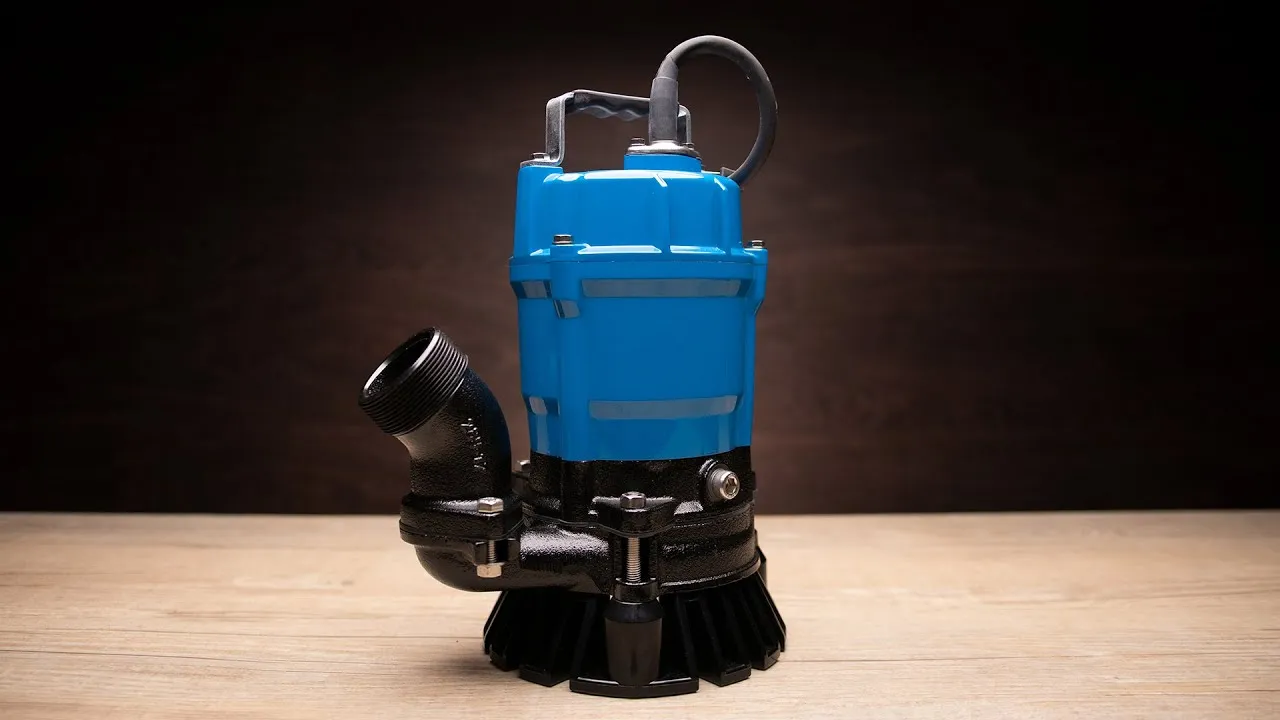

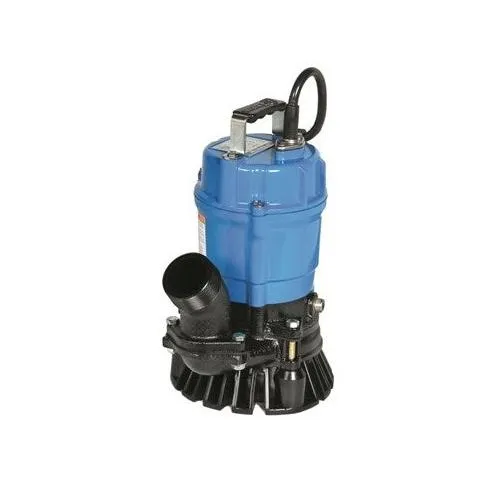

Tsurumi HS2.75S 0.75kW Submersible Drainage Pump with Semi-Vortex Impeller (Max 300LPM/180kPa)
This durable 2-inch discharge trash pump, powered by a 1/2 HP motor, is engineered to handle challenging water pumping tasks involving sand, solids, and debris. Its semi-vortex urethane rubber impeller, paired with an agitator, effectively suspends solids, enabling efficient pumping of sand, stringy materials, and other difficult-to-handle particles. Designed for reliability, the pump is equipped with a highly efficient, continuous-duty, copper-wound motor with Class E insulation, ensuring cost-effective operation. Built-in thermal protection safeguards the motor from overheating, accidental dry runs, and phase loss in three-phase models.
Additionally, this pump features a robust double mechanical seal with silicon carbide faces operating within an oil-filled chamber, offering one of the most durable sealing designs available. Double-shielded, permanently lubricated high-temperature C3 ball bearings, rated for a B-10 life of 60,000 hours, further extend the lifespan of the pump, making it an ideal choice for demanding applications.

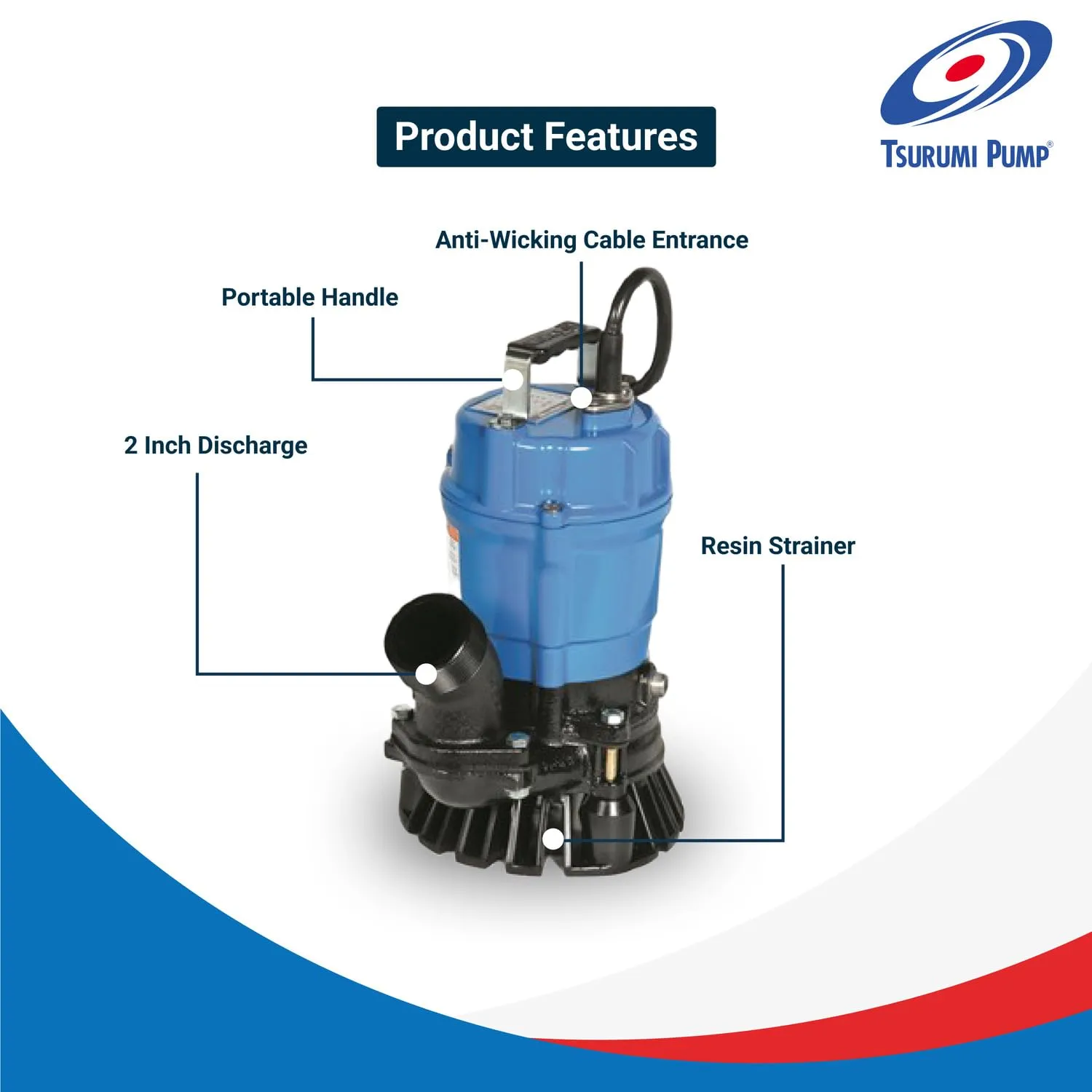

FEATURES

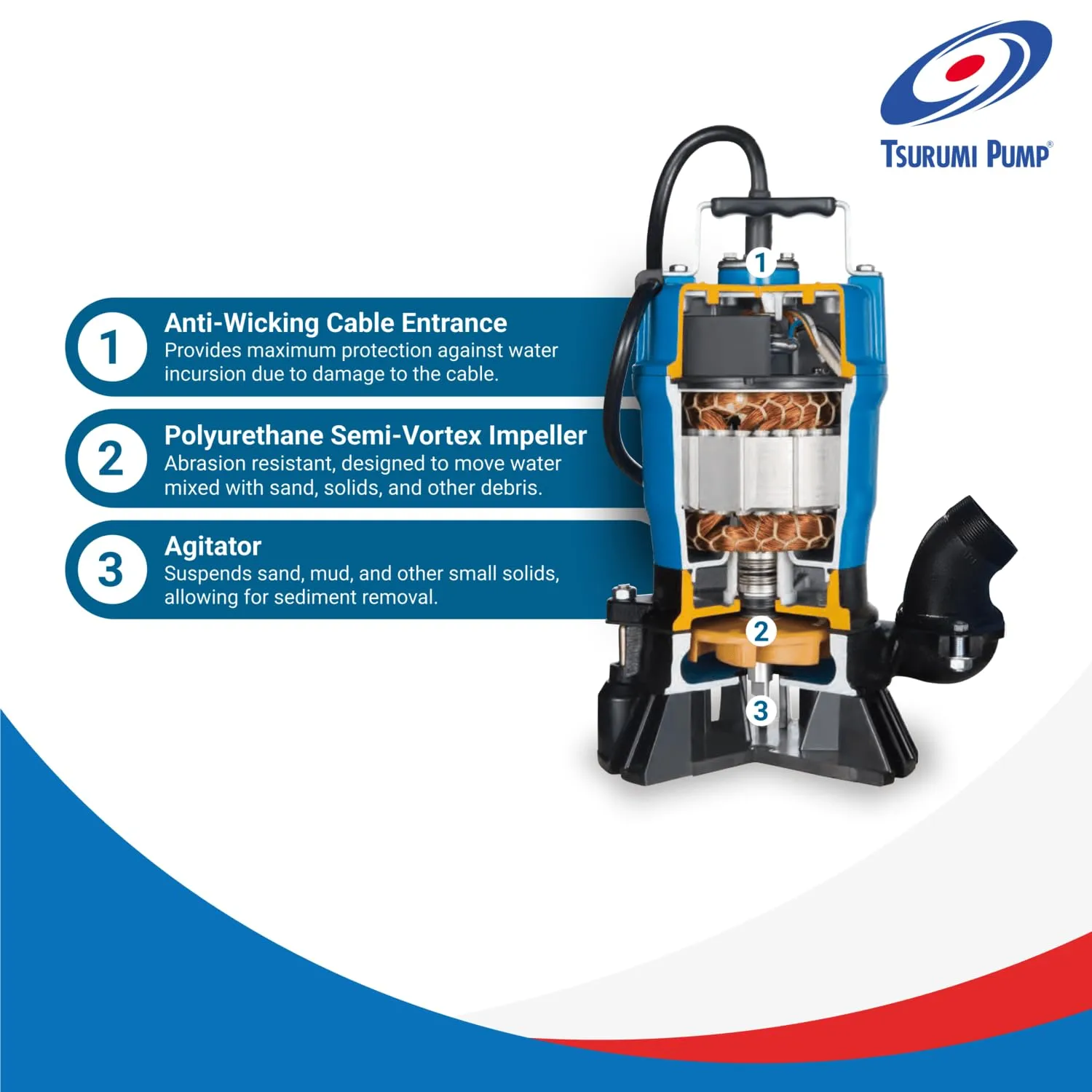

- Built-in shaft mounted agitator suspends solids.
- Urethane Semi Vortex Impeller for maximum durability and pump performance.

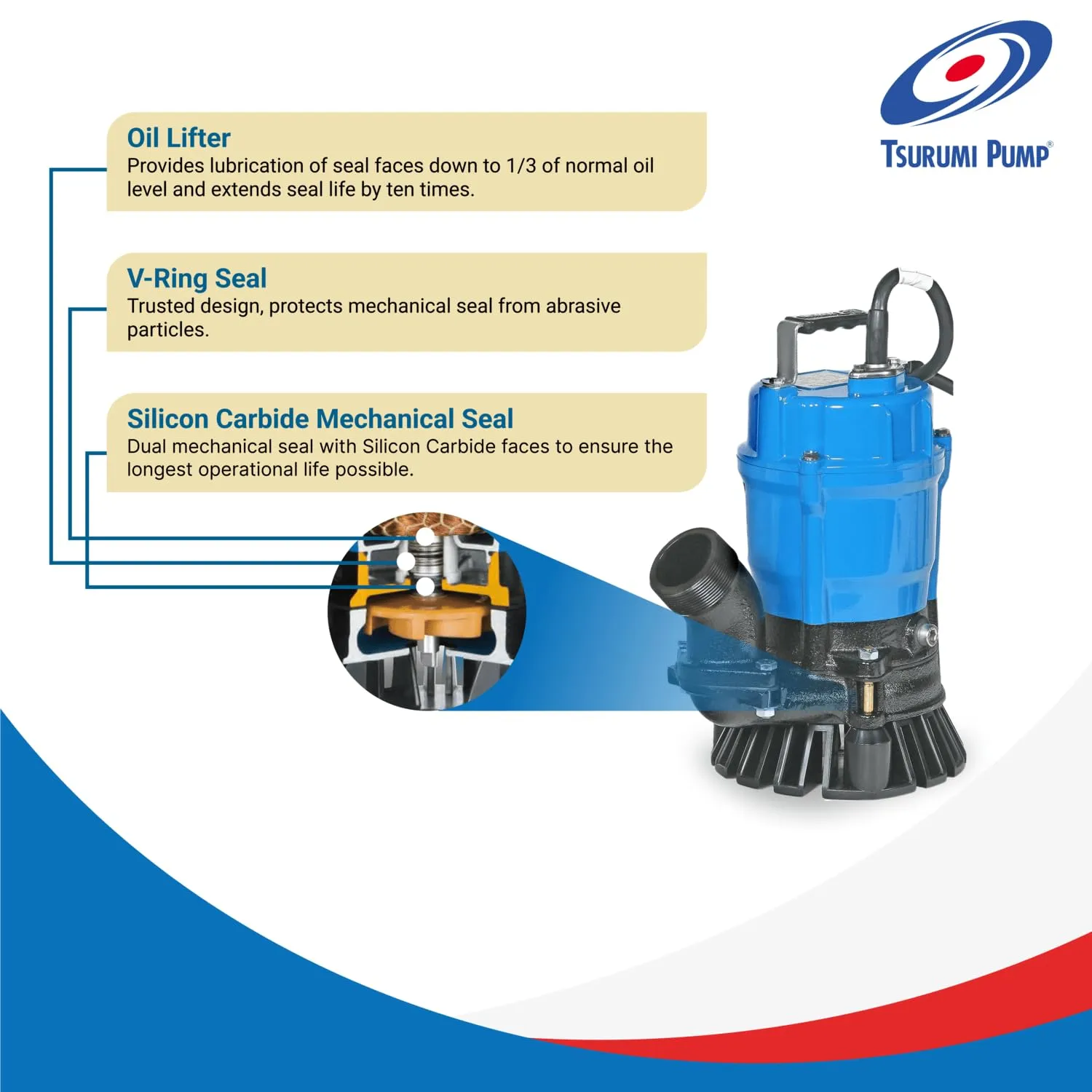

- Dual inside mechanical seal with SiC faces for longer life.
- Oil Lifter provides lubrication of the seal faces. (Patented)
- V-Ring Seal design protects mechanical seal from abrasive particles.
APPLICATIONS
- Residential, commercial, industrial wastewater and site drainage.
- Decorative waterfalls and fountains.
- Raw water supply from lakes or rivers.
- Sediment removal from small sumps or basins.
TECHNICAL SPECIFICATIONS
- Motor Output (HP): 1/2
- Phase: Single
- Discharge Bore (in.): 2
- Voltage/Amp: 110/5.4
- Cable Length (ft.): 20
- Dimension (Dia x H, in.): 10-1/16 x 12-15/16
- Continuous Running Water Level (in.): 3.5
- Pump Weight (lbs.): 30
